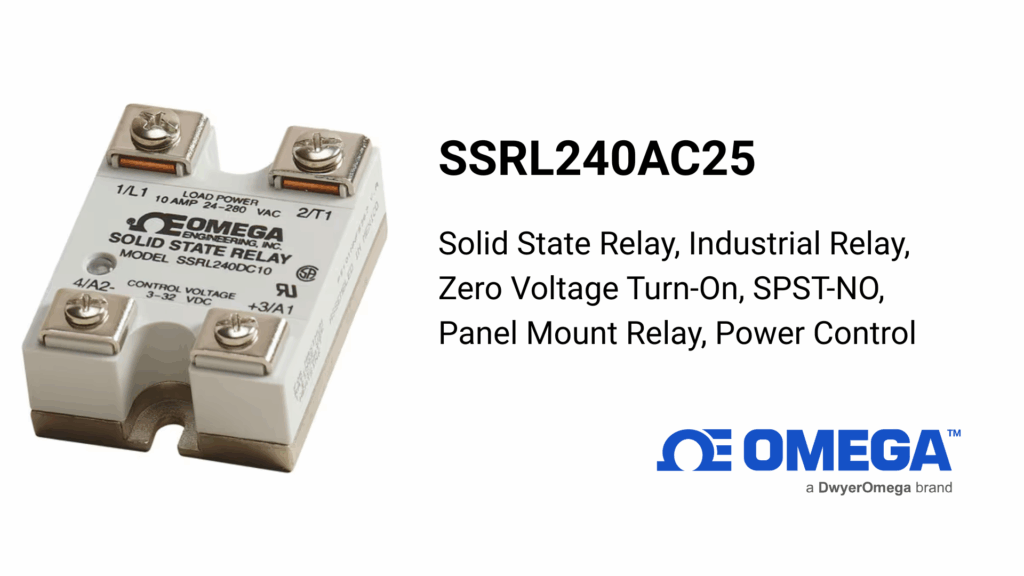

The Omega SSRL240AC25 is a Single-Pole, Single-Throw Normally-Open (SPST-NO) solid-state relay engineered for high-performance and reliability in industrial automation, heating, and motor control applications. Designed for panel mounting with screw terminals, it supports 25 A output current and operates efficiently up to 280 VAC with zero-voltage turn-on capability for clean, noise-free switching.
Built by OMEGA Engineering, this solid-state relay offers superior electrical isolation, rapid response times, and excellent resistance to electrical surges, ensuring long-term durability and precision in control systems.
Key Features
- Zero Voltage Turn-On: Minimizes electrical noise and ensures smooth power transitions.
- High Reliability Design: Rugged solid-state construction for long operational life with no moving parts.
- Wide Control Voltage Range: Accepts 90–280 VAC input signal for flexible system compatibility.
- Fast Switching Response: Turn-on time of 20 ms and turn-off time of 30 ms for quick control cycles.
- High Isolation: Up to 4000 Vrms isolation between input and output for enhanced safety.
- Compact Panel Mount: Easy installation using screw terminals for robust connections.
Product Specifications
| Specification | Details |
|---|---|
| Brand | OMEGA Engineering |
| Current Draw | 100 mA |
| Current Output | 25 A |
| Features | High Reliability |
| Frequency | 47 to 63 Hz |
| Input Control Signal | 90 to 280 VAC |
| Input-to-Output Capacitance | 8 pF |
| Input/Output-to-Ground Isolation | 2500 Vrms |
| Isolated Analog Voltage | 4000 Vrms |
| Leakage Current | 0.1 mA |
| Number of Phases | 1 |
| Operating Temperature | −20 °C to 80 °C |
| Storage Temperature | −40 °C to 80 °C |
| Supply Voltage | 24 to 280 VAC |
| Surge Current Rating | 1 Cycle Max: 150 A; 1 s Max: 30 A |
| Voltage, Max | 800 V |
| Mounting Type | Panel Mount (Screw Terminals) |
Applications
- Industrial automation systems
- Electric heating and temperature control
- Motor control circuits
- Process control panels
- Test and measurement equipment
Useful Resources
- Product Link: Omega SSRL240AC25
- Datasheet Link: View/Download
- Authorization Certificate: View/Download
