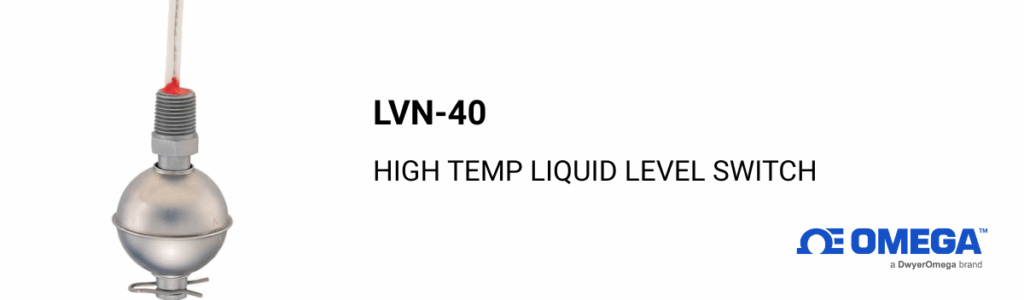

When it comes to liquid level detection in extreme environments, accuracy and durability are key. The Omega Engineering LVN-40 High Temp Liquid Level Switch is engineered to perform flawlessly under intense heat, high pressure, and demanding industrial conditions. Whether you’re working with oil, solvents, or water in high-temperature systems, this switch ensures reliable and consistent performance.
As Mangofy – Authorized Distributor of DwyerOmega, we proudly offer this product along with our official authorization certificate, ensuring customers receive genuine and quality-tested solutions.
Key Features of Omega LVN-40
- High Temperature Performance
- Operates reliably in temperatures up to 149°C and as low as -40°C.
- Perfect for high-heat industrial processes such as boilers, heat exchangers, and chemical plants.
- Rugged Construction
- Wetted parts made from 316 stainless steel for exceptional durability.
- PVC insulation and NEMA Type 6 enclosure for long service life in harsh conditions.
- Wide Media Compatibility
- Designed for use with oil, solvents, and water.
- High Pressure Tolerance
- Can withstand pressures up to 900 psi without compromising performance.
- Compact & Practical Design
- 1/8″ NPT male process connection for easy installation.
- Adjustable switch point with specific gravity sensitivity of 0.72.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Omega Engineering |
| Approvals | CE, RoHS, UKCA, UL cULus |
| Cable Length | 24 in |
| Enclosure Ratings | NEMA Type 6 |
| Insulation | PVC |
| Materials, Wetted | 316 Stainless Steel |
| Media Compatibility | Oil, Solvents, Water |
| Operating Pressure, Max | 900 psi |
| Operating Temperature, Max | 149°C |
| Operating Temperature, Min | -40°C |
| Process Connection Size | 1/8 in |
| Process Connection Type | NPT Male |
| Specific Gravity | 0.72 |
| Switch Note | Approx. 1/2 the distance from the end of stem to mounting or halfway point of float travel in liquid of 1.0 specific gravity |
Applications
- Power generation plants
- Petrochemical and chemical processing
- High-temperature fluid storage tanks
- Steam boilers and industrial heat systems
Why Buy from Mangofy?
As Mangofy – Authorized Distributor of DwyerOmega, we ensure that every product we supply is genuine, tested, and backed by manufacturer warranty. Our official certificate proves our trusted partnership with Omega Engineering.
🔗 Product Link: LVN-40 – High Temp Liquid Level Switch
📄 Datasheet: Click here to view
