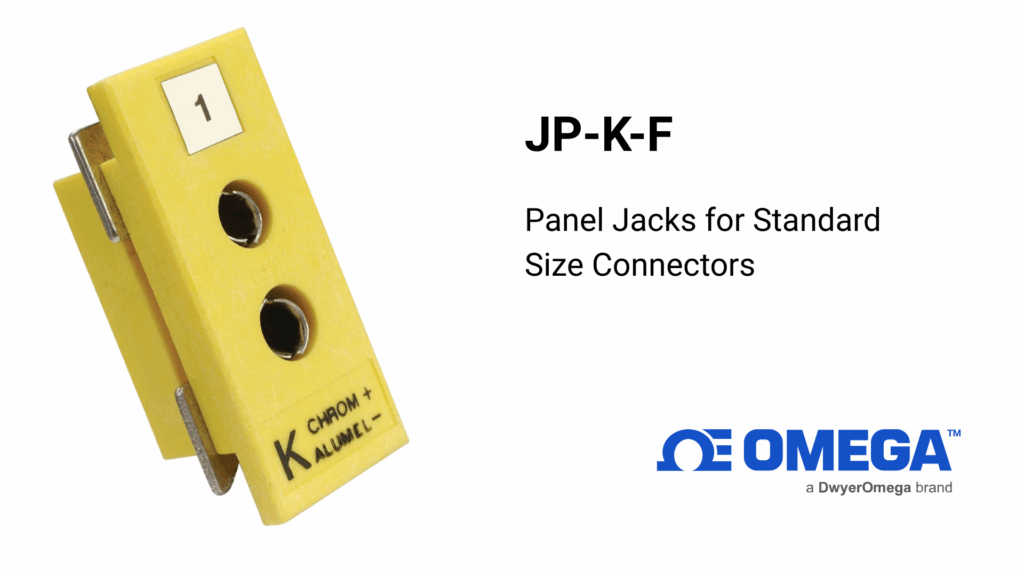

The Omega JP-K-F is a high-quality panel jack designed for standard size Type K thermocouple connectors. Built for durability and accurate temperature measurement, this female panel jack is ideal for laboratory, industrial, and research applications requiring stable connections and easy installation.
Key Features of Omega JP-K-F
- Brand: OMEGA Engineering
- Thermocouple Type: Type K
- Alloy Material (+): Chromel
- Alloy Material (-): Alumel
- Color Code Standard: ANSI
- Electrical Connection: Standard Female Thermocouple Connector
- Number of Connector Rows: 1
- Panel Dimensions:
- Depth: 0.97 in
- Height: 1.2 in
- Length: 0.64 in
- Shell Material: Glass, Nylon
- Shell Color: Yellow
- Process Temperature Range: -29 °C to 180 °C
- Wire Gauge: 14 AWG
Why Choose JP-K-F Panel Jacks?
- Durable Construction: Made from glass-filled nylon and high-quality thermocouple alloys for long-lasting performance.
- ANSI Color Coding: Ensures easy identification and reduces wiring errors.
- Versatile Applications: Perfect for standard Type K thermocouple installations in labs, industrial setups, and testing environments.
- Compact Design: Fits standard panels while providing reliable connections.
- Accurate Signal Transmission: Maintains precise temperature readings in extended thermocouple circuits.
Applications
- Laboratory and research equipment
- Industrial process monitoring
- Test and measurement setups
- Custom thermocouple panel installations
